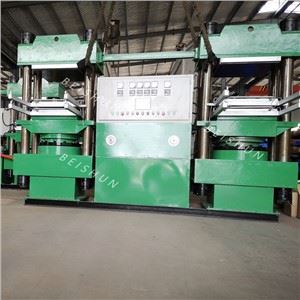

Automatic Rubber Vulcanizing Press Machine

The Automatic Rubber Vulcanizing Press Machine is an advanced industrial vulcanizing solution designed for efficient and stable production of rubber products. By applying controlled temperature, pressure, and curing time, this machine enables the vulcanization process that transforms raw rubber compounds into durable, elastic, and high-performance rubber components.

• The automatic rubber vulcanizing press machine adopts a four-column double-link structure. The main oil cylinder is made of QT500-7 material, and the plunger is made of chilled alloy cast iron material, with a maximum pressure resistance of 20Mpa, high strength and good wear resistance; the hydraulic system is controlled by 3KW motors respectively.
• The equipment adopts PC+touch screen combined intelligent control, vulcanization pressure and vulcanization time can be adjusted; automatic and intelligent constant temperature, with automatic deflation function, deflation times, deflation pressure, suffocation time and deflation stroke are adjustable; the two sides of the double structure are independent The control and operation do not interfere with each other, and two sets of motor oil pumps are used for independent control, which greatly reduces the difficulty of maintenance in the future.

• The sealing structure of the main oil cylinder has been improved, and the anti-leakage function has been well improved. The sealing ring is no longer a wearing part, and we also make a one-year warranty.

The equipment adopts PC + touch screen for program control and button operation, which conforms to traditional operating habits to improve work efficiency and stable work performance; and is equipped with emergency stop buttons and auxiliary operation control boxes at each corresponding position to facilitate production operation and safety protection; main electrical components Fully using the latest high-power electrical components, the performance is more stable, the service life is longer, and the failure rate is lower, which ensures the stable operation of the electronic control system.

The following issues should be paid attention to when maintaining the automatic rubber vulcanizing press machine:

1. The storage environment of the vulcanizer should be kept dry and well ventilated to avoid dampness of electrical circuits due to humidity;

2. Do not use the vulcanizer outdoors in rainy days to prevent water from entering the electric control box and heating plate;

3. If the working environment is humid and watery, when dismantling and transporting the vulcanizing press machine, items should be raised on the ground, and the vulcanizing press machine should not be in direct contact with water;

4. If water enters the heating plate due to improper operation during use, you should first contact the manufacturer for maintenance. If emergency repair is required, open the cover on the heating plate, pour out the water first, then set the electric control box to manual operation, heat it to 100°C, keep it at a constant temperature for half an hour, dry the circuit, and put it in the Belt gluing is performed manually. At the same time, the manufacturer should be contacted in time for the overall replacement of the line.

5. If the vulcanizer does not need to be used for a long time, the heating plate should be heated every half a month (the temperature is set at 100 ° C), and the temperature should be maintained for about half an hour;

6. After each use, the water in the hydraulic plate should be cleaned, especially in winter, if the water cannot be cleaned, it will often lead to premature aging of the rubber of the hydraulic plate and reduce the service life of the hydraulic plate;

The correct way to discharge water is to carry out the vulcanization machine after the vulcanization and heat preservation is completed and before the vulcanizer is disassembled. If the water is discharged after the machine is disassembled, the water in the water pressure plate may not be drained cleanly.
